AceTime  3.0.0
Date and time classes for Arduino that support timezones from the TZ Database.
Typedefs | Functions | Variables
common.h File Reference

Identifiers used by implementation code which need to be publically exported. More...

#include <stdint.h>
Include dependency graph for common.h:

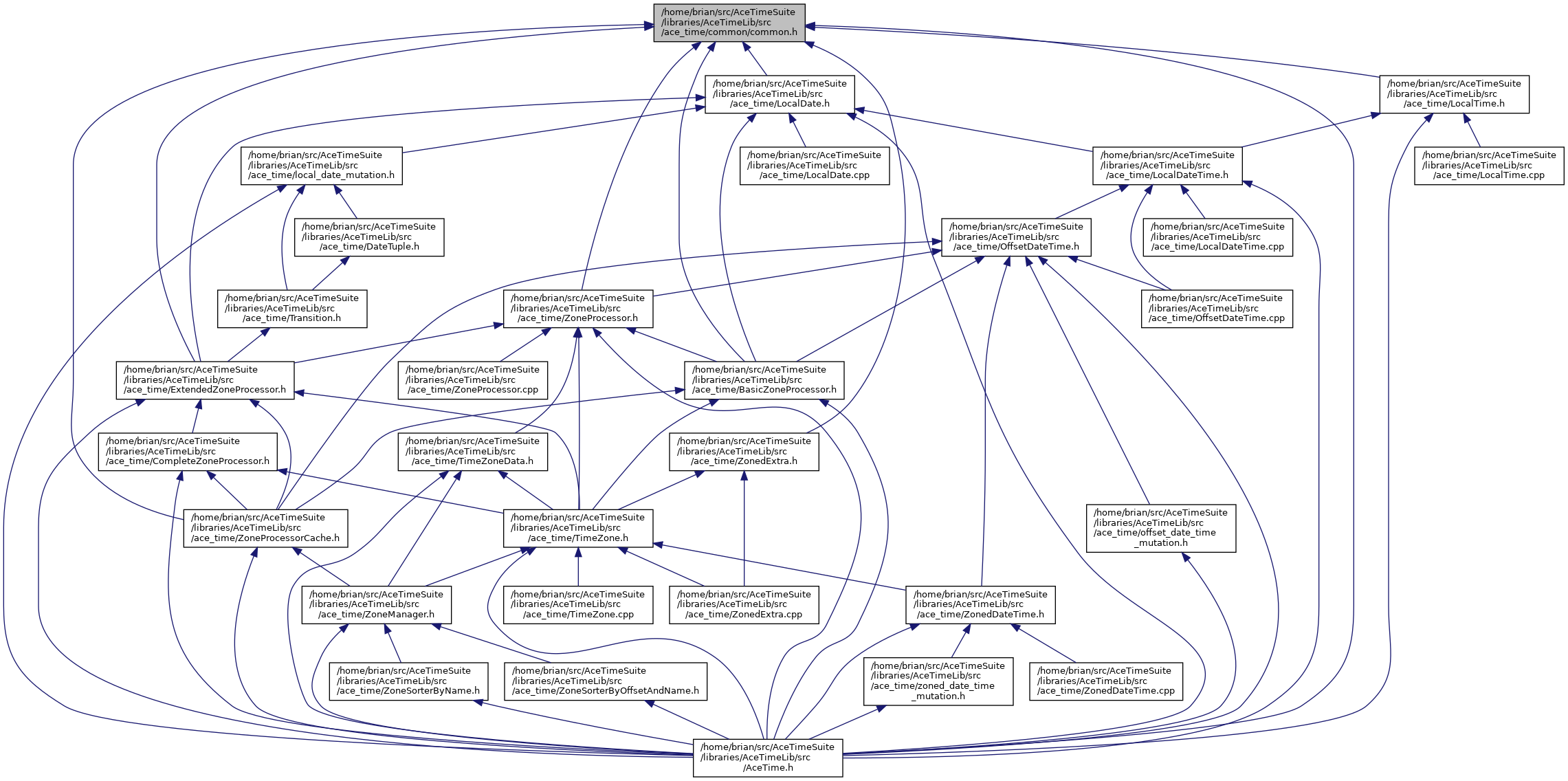

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs

typedef int32_t ace_time::acetime_t
 Type for the number of seconds from epoch. More...


Functions

template<typename T >
void ace_time::swap (T &a, T &b)
 Swap 2 parameters.


Variables

const uint8_t ace_time::kAbbrevSize = 7 + 1
 Size of the c-string buffer needed to hold a time zone abbreviation. More...


Detailed Description

Identifiers used by implementation code which need to be publically exported.

Definition in file common.h.

Typedef Documentation

◆ acetime_t

typedef int32_t ace_time::acetime_t

Type for the number of seconds from epoch.

The AceTime epoch is 2050-01-01 00:00:00 UTC by default but can be changed using Epoch::currentEpochYear(). Unix epoch is 1970-01-01 00:00:00 UTC.

Definition at line 24 of file common.h.

Variable Documentation

◆ kAbbrevSize

const uint8_t ace_time::kAbbrevSize = 7 + 1

Size of the c-string buffer needed to hold a time zone abbreviation.

  • The longest explicit abbreviation in the database (as of 2019 or so) seems to be 5 characters (https://www.timeanddate.com/time/zones/)
  • The TZ database spec used to say that abbreviations are 3 to 6 characters but that wording is no longer in the document (https://data.iana.org/time-zones/theory.html#abbreviations).
  • The zic(1) man page says "A time zone abbreviation has fewer than 3 or more than 6 characters. POSIX requires at least 3, and requires implementations to support at least 6". The first part of that wording makes no sense at all.
  • The z specifier, added in TZDB 2024b, autogenerates the abbreviation using a [+/-][hh[mm[ss]]] pattern, which can be 7 characters long.

Let's increase the max length from 6 to 7 to handle the z. We also need one extra byte for the terminating NUL character.

Definition at line 44 of file common.h.
